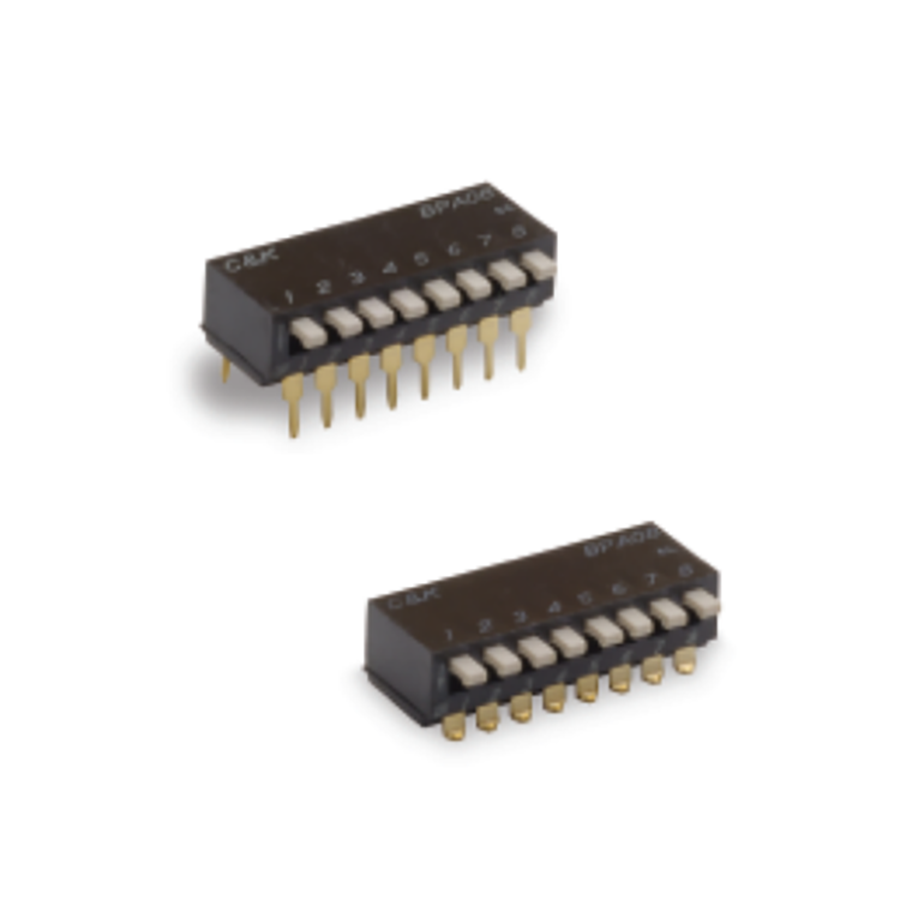

BPA01B
Manufacturer:
C&K Components
Mfr.Part #:
BPA01B
Datasheet:
Description:
DIP Switches Through Hole SPST Number of Positions:1 Current Rating:100 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 4.4704 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPST |
| Packaging | Tube |
| Depth | 10.25 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper, Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 1 |
| Orientation | Straight |
| Body Material | Polyphenylene |
| Actuator Length | 2.1 mm |
| Throw Configuration | SPST |
| Number of Positions | 1 |
| Contact Resistance | 50 mΩ |
| Electrical Life | 1 kcycles |
| Actuator Material | Polyamide |
| Mechanical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Washable | Yes |
Stock: 2745
Distributors
pcbx
pcbxUnit Price$1.17638
Ext.Price$1.17638
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.17638 | $1.17638 |
| 10 | $0.91990 | $9.19900 |
| 25 | $0.88527 | $22.13175 |
| 50 | $0.85194 | $42.59700 |
| 100 | $0.81987 | $81.98700 |
| 300 | $0.76823 | $230.46900 |
| 500 | $0.71985 | $359.92500 |
| 1000 | $0.68223 | $682.23000 |
